Ford 80-86 Pickup Truck F150 F250 Bronco AC Heater Box Rebuild Seal Kit

DMT AC heater box rebuild foam seals for all 1980-86 F series pickup or Bronco. Reverse engineered in CAD and laser cut.

Note: This is NOT for the "High Output" heater box. Do not ask me what a "High Output" box is. I don't know. I just know it wont fit.

This also DOES NOT fit the later 87-96 boxes. Have had a few people buy and try already.

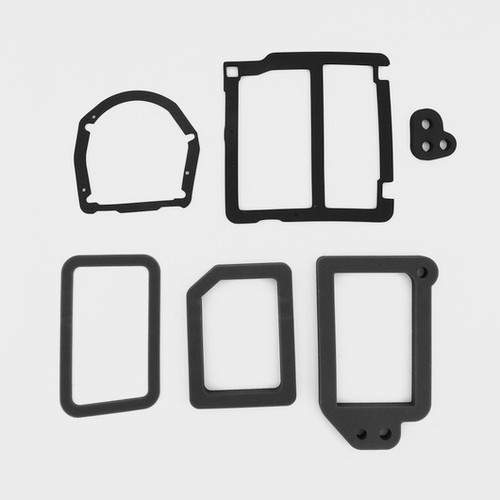

Includes (starting at upper left and going clockwise)

Blower Motor to Engine AC Heater Box Seal (Engine Side) - .187 foam rubber - Ford part# D9AZ-18N260-A
AC Heater Box Air Intake to Firewall Seal (Engine Side) - .375" foam rubber - Ford part# E5TZ-19B762
Heater Core Tubes to Firewall Seal (Interior Side) - .625" foam rubber
Dash Ducts to Main Interior Plenum Seal (Interior Side) - 1" charcoal foam
Main Interior Plenum to Firewall Seal (Interior Side) - 1" charcoal foam
AC Heater Box Air Exhaust to Firewall Seal (Engine Compartment Side) - .25" charcoal foam

1980 80 1981 81 1982 82 1983 83 1984 84 1985 85 1986 86 F100 F150 F250 F350 Bronco

See info about this seal at Ford Truck Enthusiast forum
https://www.ford-trucks.com/forums/1493775-looking-for-part-19b762.html

Material
CORRECT thickness, modern material, foam and foam rubber pieces
